South Atlantic S 600

South Atlantic S 600 Self-steering windvane pilot

Designed for transoceanic yachts from 30 to 60 feet.

The South Atlantic S 600 is a servo-auxiliary steering system that uses advanced servo-assisted technology to provide reliable offshore guidance. Unlike traditional systems that use lines to move the boat's main wheel or tiller, these models employ a servo-pendulum rudder to directly actuate an independent auxiliary rudder.

By using this dedicated auxiliary rudder to steer the vessel, the system operates as a completely independent unit. This mechanical design ensures high power and precision without adding friction or load to the boat's main steering system.

"The silent crew member that never sleeps and never tires."

"Simple, robust and reliable: South Atlantic windvane pilots, making life on board easier with every mile."

S 600

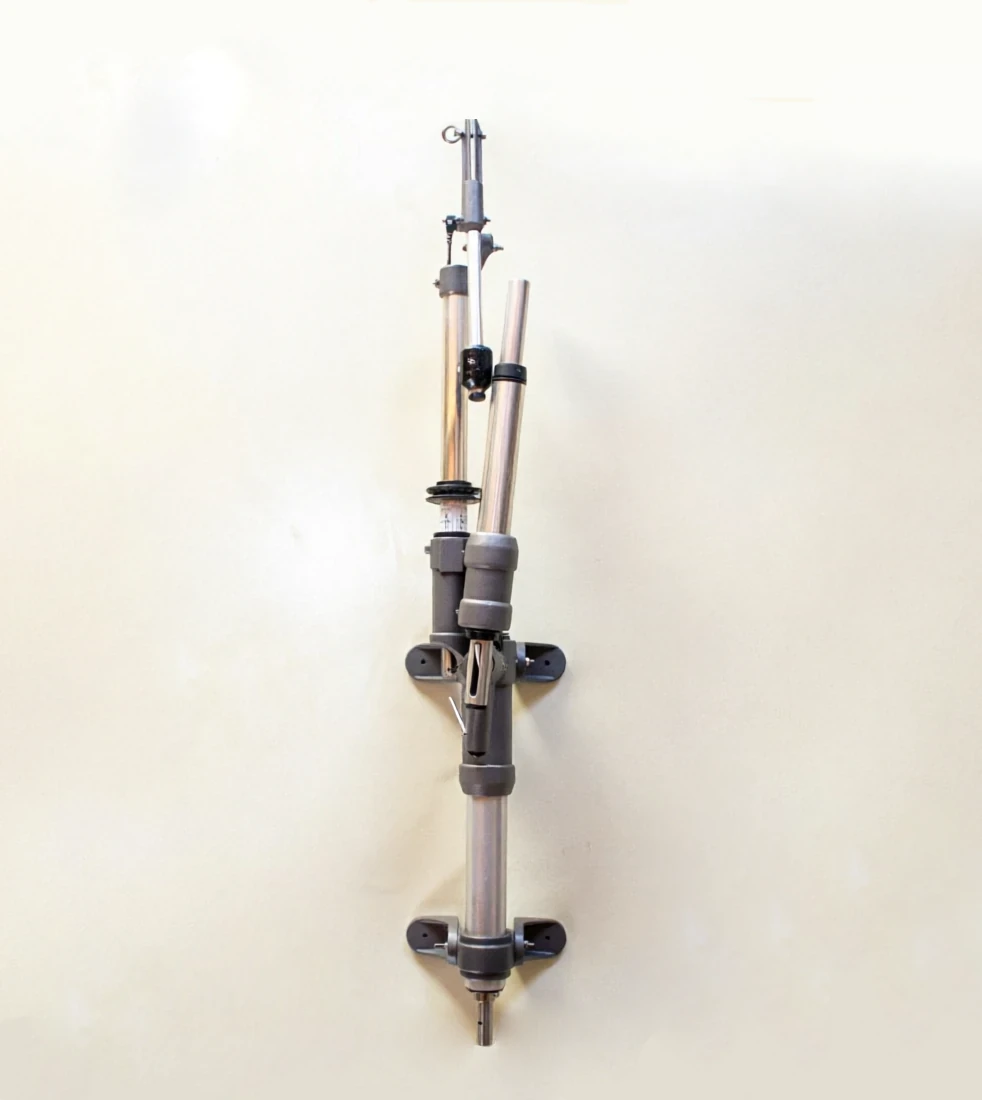

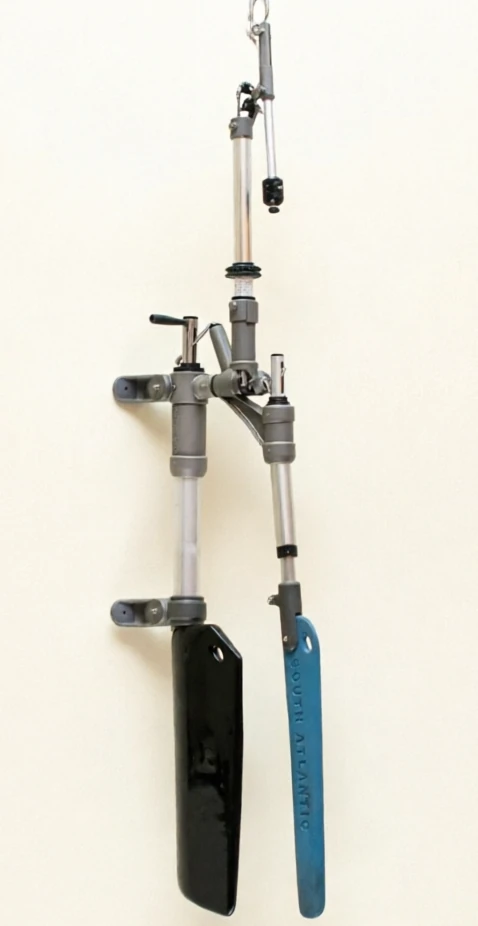

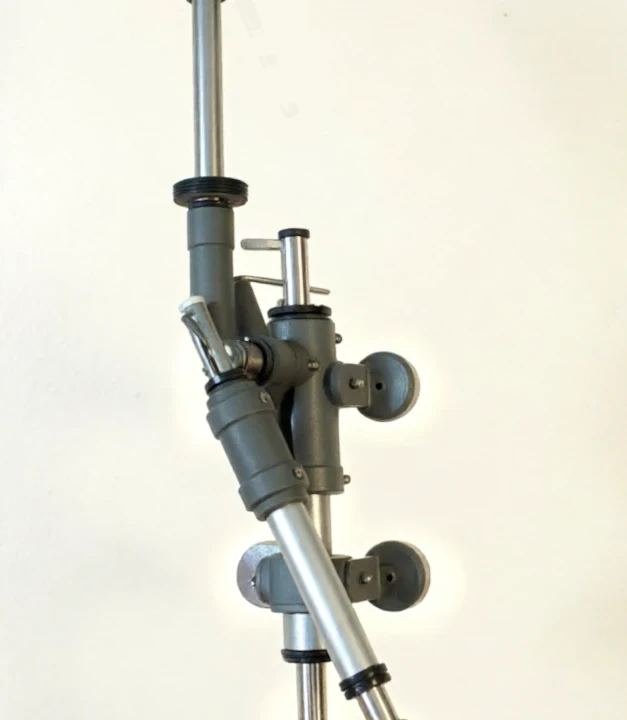

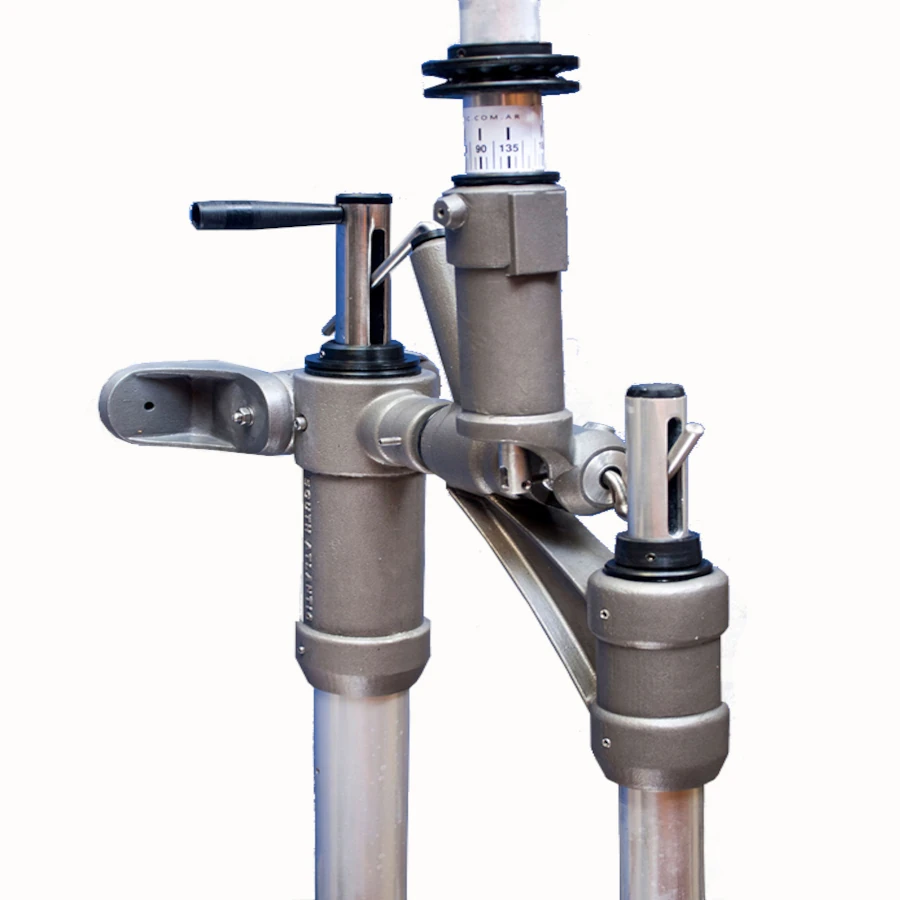

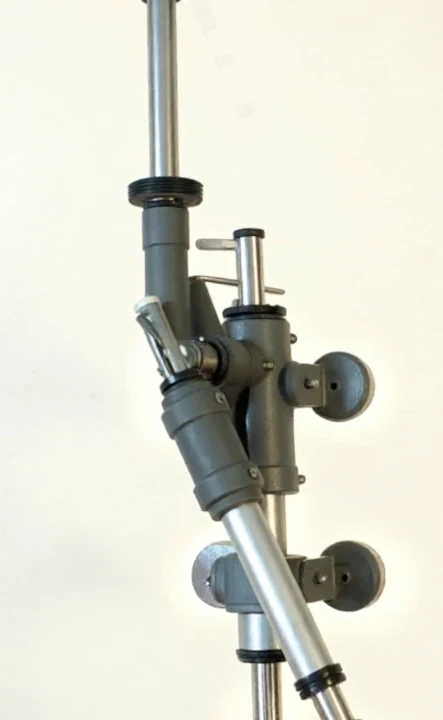

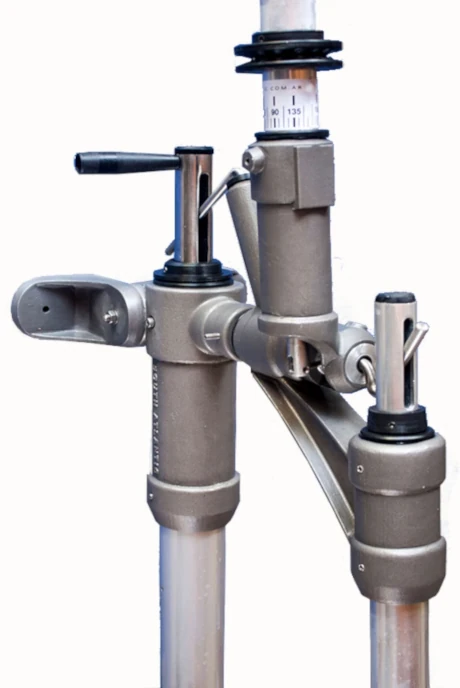

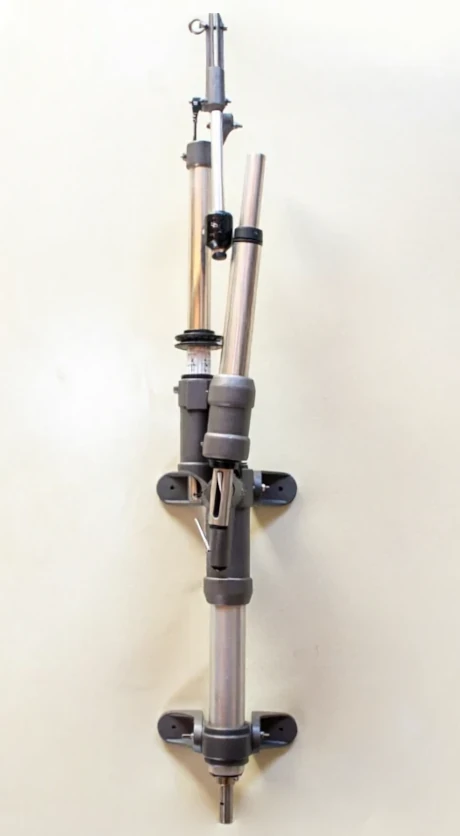

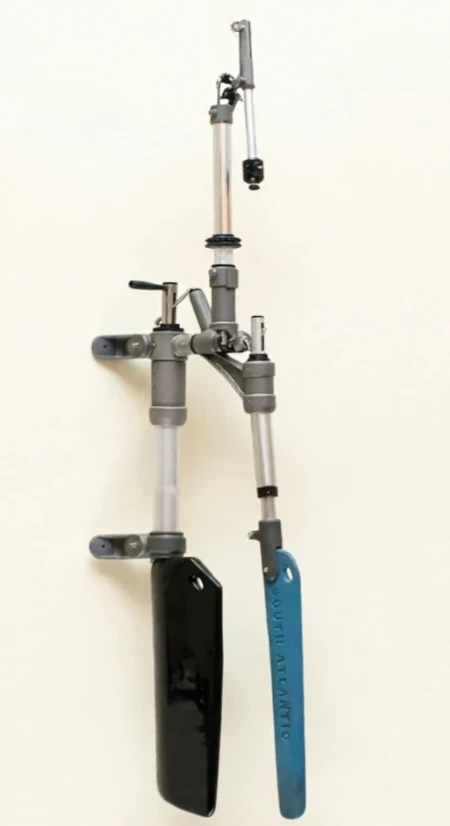

The South Atlantic S 600 is a robust servo-auxiliary self-steering system manufactured from high-quality aluminium alloy castings. It uses a servo-pendulum to actuate an independent auxiliary rudder through a stainless steel coupling rod designed for a simple connection. This configuration allows the servo-rudder to be folded upward while the auxiliary rudder remains submerged, providing direct steering without the need to connect lines to the boat's wheel or tiller.

Zero electrical consumption: Reduces dependence on complex charging systems and electronics.
Mechanical reliability: Just as diesel engines have not replaced sails for ocean crossings, electronic autopilots cannot match the silent reliability of autonomous mechanical steering.

South Atlantic proves that mechanical efficiency and fair prices can go hand in hand. The S 600 offers dependable quality. Price: from €4,200. Explore the available options in our online store.

Weight: approx. 50 / 70 kg
Overall length (LOA) S-600 Series: up to 18 m / 60 feet
Displacement S-600 Series: up to 27,000 kg

Body materials - Seawater-resistant aluminium
Auxiliary module shafts: DUPLEX 2205 STEEL. The S 600 shaft is 40 mm in diameter and made of Super Duplex stainless steel, making it clearly superior: it bends half as much and withstands 40% more load before deforming. Its hollow design makes optimal use of the laws of physics to withstand bending moments with the lowest possible weight.
Bearings - We use maintenance-free slide bearings that operate smoothly. The need to replace bearings is virtually non-existent.
Bearing material: POM. POM (Polyacetal / Delrin), mechanically POM is far superior to PTFE for structural and load-bearing applications such as bushings, sleeves or rudder supports.
Servo rudder made of polyethylene
6 mm polycarbonate wind vane
Strength and durability - South Atlantic uses a 100% seawater-resistant alloy. A lifetime warranty against material defects is offered on the aluminium.
